Home/Catalog/VDSC-800

VDSC-800

Specifications

Productivity in primary grain cleaning800bushels/hour20tons/hour
Screen size39.4*70.9inches100*180cm
Energy consumption1.0horse power0.75kW/hour
Weight1220lb550kg
Power consumption220V60Hz
Measurements97.3inx61inx60.2in2470mmx1550mmx1530mm

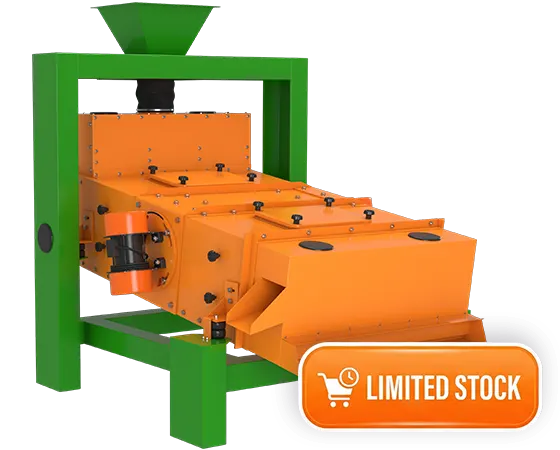

The Metra VDSC-800 Vibration Grain Cleaner

enhances grain cleaning processes with a productivity rate of 800 bu/h. Ideal for medium-sized operations, it offers enhanced efficiency and precision. This model maintains the user-friendly and no maintenance design of the VDSC-400, but with increased capacity for larger volumes of grain. This cleaner is proficient in accommodating various grain varieties, distinguished by its outstanding efficiency and fast processing speed.

Photo & Video with Metra VDSC-800

Information and operating principle of the Vibration Grain Cleaner

The principle of its work is to use vibrations of a certain intensity and direction to provide pre-cleaning and cleaning of raw grains and seeds, grading by size, removing large and small impurities, and removing dust.

The vibration grain cleaner has a double screen for better grain cleaning results.

As a result of the vibration motor drive, the size of excitation force, vibration direction and the screen body angle can be adjusted.

Different specifications of the screen surface can be used to clean large and small, light miscellaneous grain material such as, wheat, rice, maize, beans, oil-bearing crops, etc.

Sieve pores are unlikely to become blocked thanks to the automatic cleaning device.
