VDSC-1600

Specifications

Productivity in primary grain cleaning1600bushels/hour45tons/hour
Screen size59.0*90.5inches150*230cm
Energy consumption2.0horse power1.5kW/hour
Weight1500lb680kg
Power consumption220V60Hz
Measurements116.5inx85.9inx64.4in2960mmx2180mmx1636mm

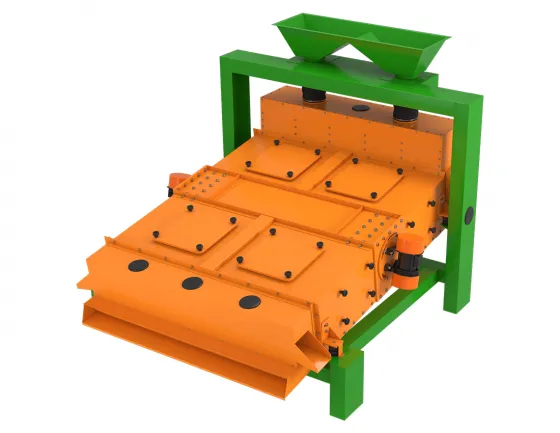

The Metra VDSC-1600 Vibration Grain Cleaner

is designed for larger operations, offering a productivity rate of 1600 bu/h. This model combines high-capacity cleaning with the same low energy consumption and ease of use characteristic of the VDSC series. It’s perfect for operations looking to efficiently clean significant quantities of grain with minimal hassle. Capable of managing different kinds of grains, this cleaner stands out for its exceptional performance and swift operation.

Photo & Video with Metra VDSC-1600

Information and operating principle of the Vibration Grain Cleaner

The principle of its work is to use vibrations of a certain intensity and direction to provide pre-cleaning and cleaning of raw grains and seeds, grading by size, removing large and small impurities, and removing dust.

The vibration grain cleaner has a double screen for better grain cleaning results.

As a result of the vibration motor drive, the size of excitation force, vibration direction and the screen body angle can be adjusted.

Different specifications of the screen surface can be used to clean large and small, light miscellaneous grain material such as, wheat, rice, maize, beans, oil-bearing crops, etc.

Sieve pores are unlikely to become blocked thanks to the automatic cleaning device.
