VDSC-2000

Specifications

Productivity in primary grain cleaning2000bushels/hour50tons/hour
Screen size70.8*90.5inches180*230cm
Energy consumption3.0horse power2.2kW/hour
Weight2425lb1100kg
Power consumption220V60Hz
Measurements116.5inx97.6inx73.7in2960mmx2480mmx1873mm

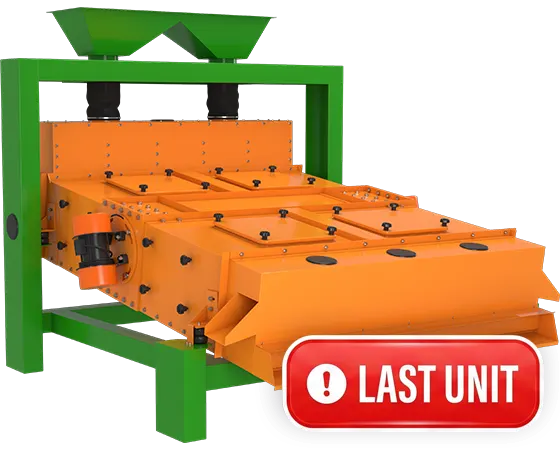

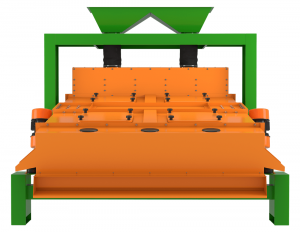

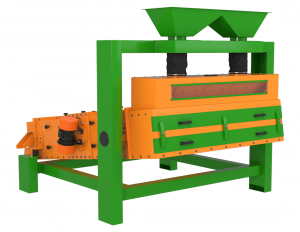

The Metra VDSC-2000 Vibration Grain Cleaner

boasts the highest capacity with a productivity rate of 2000 bu/h, making it the go-to choice for very large grain cleaning operations. It maintains the series’ commitment to efficiency, ease of use, and environmental friendliness, but with the ability to handle even larger volumes of grain. Designed to handle a diversity of grain types, this cleaner is recognized for its high operational efficiency and quick processing capabilities.

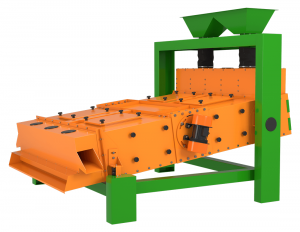

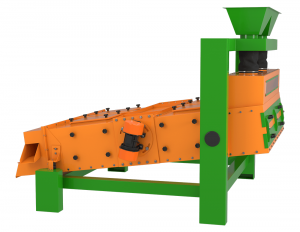

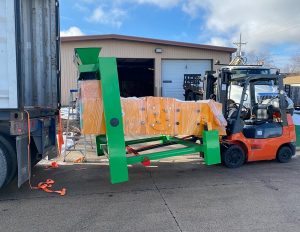

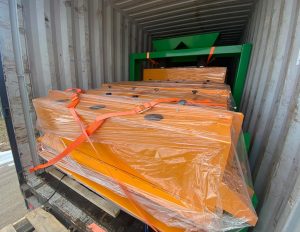

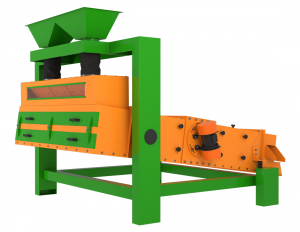

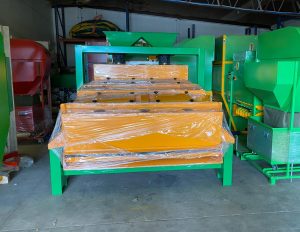

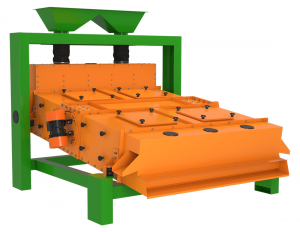

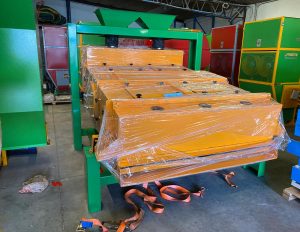

Photo & Video with Metra VDSC-2000

Information and operating principle of the Vibration Grain Cleaner

The principle of its work is to use vibrations of a certain intensity and direction to provide pre-cleaning and cleaning of raw grains and seeds, grading by size, removing large and small impurities, and removing dust.

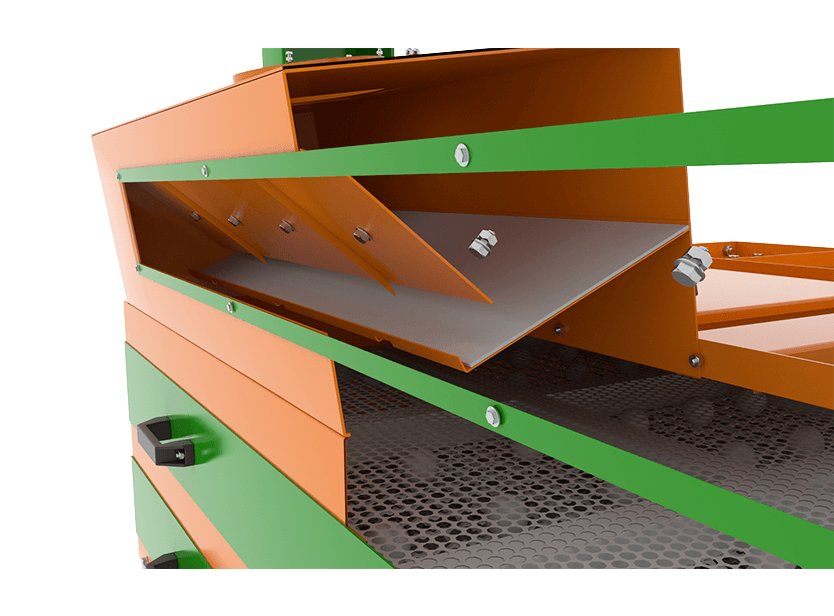

The vibration grain cleaner has a double screen for better grain cleaning results.

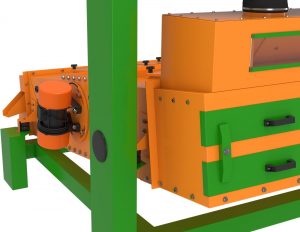

As a result of the vibration motor drive, the size of excitation force, vibration direction and the screen body angle can be adjusted.

Different specifications of the screen surface can be used to clean large and small, light miscellaneous grain material such as, wheat, rice, maize, beans, oil-bearing crops, etc.

Sieve pores are unlikely to become blocked thanks to the automatic cleaning device.
