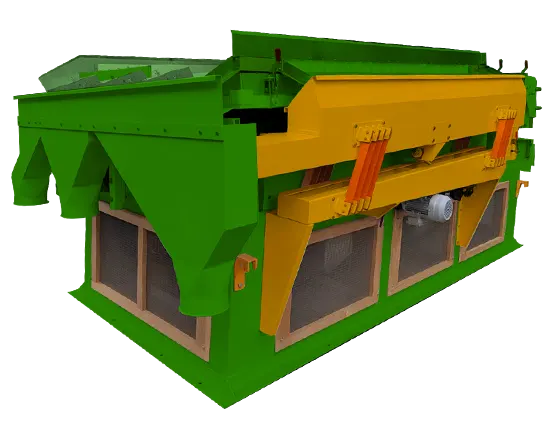

BLGS-200

Specifications

Productivity in grain cleaning200bushels/hour5tons/hour
Screen Area39.4ft²3.66m²
Working Air Pressure0~0.15psi0~1000pa
Total Power17.90horse power13.35kW/hour
Weight3090lb1400kg
Dimension151.2inx83.1inx80.3in3840mmx2110mmx2040mm

The Metra BLGS-200 Gravity Separator is designed for the separation of dry bulk materials of uniform size but differing in mass, this blowing-type gravity separator excels in eliminating moldy, blighted, and insect-infested grains, ensuring only the highest quality grains are processed.

Ideal for when air aspiration and screening reach their limits, the BLGS-200 acts as an essential addition to your cleaning equipment system, not as a replacement. It efficiently removes both light and heavy impurities, including husks, immature, sprouted, and insect-damaged grains, through its precise sorting process. Built with a robust welded frame, the BLGS-200 minimizes the effects of vibration oscillations, protecting the machine’s static elements and fastenings for long-term durability and reliable performance.

Information of the Blowing Type Gravity Separator from Metra

The raw material is delivered to the gravity separator via an elevator. Subsequently, the material is evenly distributed on the gravity separator table. The fan motor, located under the table, generates wind while the machine vibrates. Due to the different angles of the gravity table, the moldy, blighted, and insect-infested grains move downwards, while the good grains move upwards and are discharged. The middle section comprises a mixture of grains, which is then conveyed to a elevator for recycling.
