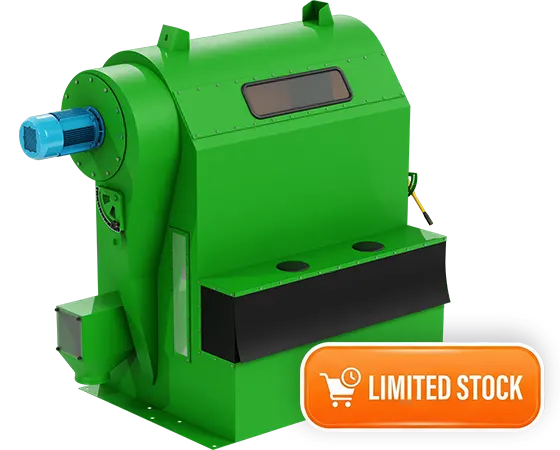

ARC-400
Read the manualSpecifications
- Productivity in grain cleaning800bushels/hour20tons/hour
- Supplementary air intake280cfm480m³/h
- Power3.95horse power2.95kW/hour
- Weight1015lb460kg
- Dimension63.5inx39.4inx68.7in1613mmx1000mmx1745mm
The ARC-400 is designed to effectively remove light impurities and dust from the grain mass. Featuring a built-in fan and air recirculation system, it ensures optimal separation of impurities. Its unique self-cleaning mechanism and adjustable air channel cater to diverse cleaning needs. Compatible with other cleaning systems or as a standalone, the ARC-400 guarantees a clean, environmentally friendly operation without dust emission. It can seamlessly integrate with other grain cleaning systems such as the VDSC (vibration grain cleaner) or function as a standalone unit in the cleaning process. Essential for enhancing grain cleaning processes, it ensures purity and quality. Designed to efficiently eliminate light impurities and dust from grain masses.

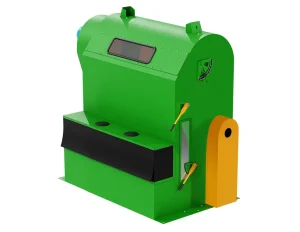

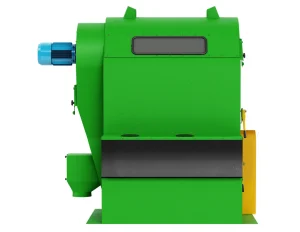

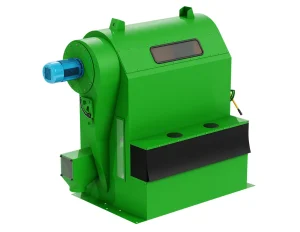

Image with Metra ARC-400
Information and operating principle of the Air Recycling Aspirator
Built-in fan and air recirculation system to separate dust and light impurities;Unique impurity extraction system from the air box for good sealing of effective impurity precipitation;The pressure valve at the grain outlet can close automatically to ensure independent air circulation and no dust flying around. No harm to the environment;The air channel can be adjusted according to the requirements to achieve the best impurity cleaning result.
