6AS-68L Belt
Read the manualSpecifications
- Capacity40-80bushels/hour1.0-2.0tons/hour
- Air pressure0.4-0.6Mpa
- Air Consumption<35CFM<1000liter/min
- Weight683lb310kg
- Power1.0-1.3kw
- Measurements48.9inx80.2inx69.3in1241mmx2038mmx1761mm

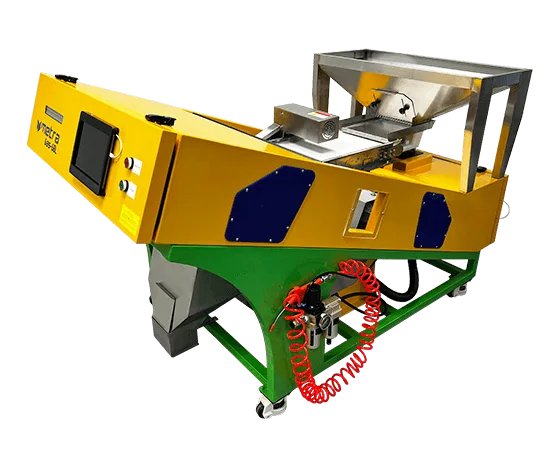

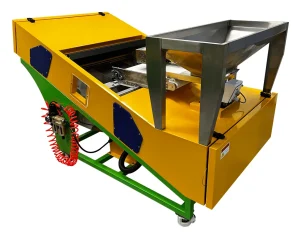

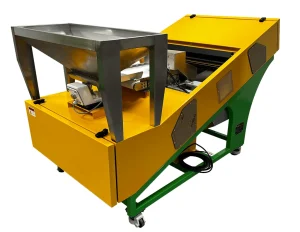

The Metra 6AS-68L Belt Optical Color Sorter
elevates grain sorting with its precise color differentiation capabilities. Equipped with advanced optical sensors and a unique belt-based sorting system, it is specifically designed for delicate grain handling, minimizing damage while maximizing sorting accuracy. This variant is perfect for operators seeking gentle yet efficient sorting solutions.

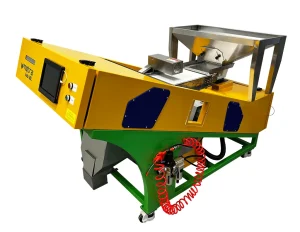

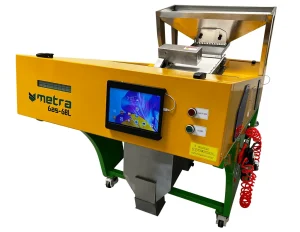

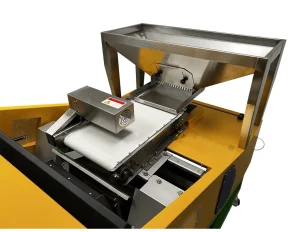

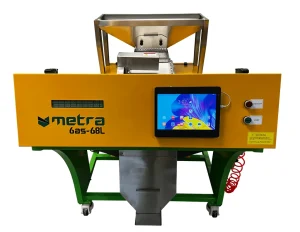

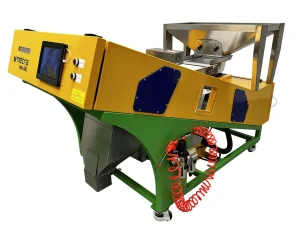

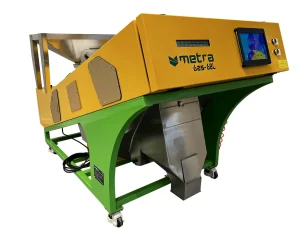

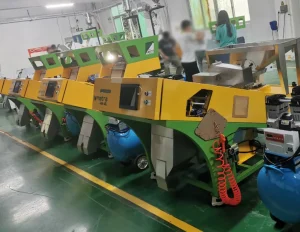

Photo & Video with Metra 6AS-68L Belt
Information and operating principle
Belt-type color sorters have a wide application range. One chute color sorter is usually applicable to certain products, as the chute is designed for this kind of material based on the sizes and shapes of the material at the very beginning. As a result, a chute color sorter can only work on certain products. It does not have multiple applications because of the material-oriented chute design, and this problem does harm the sorting accuracy of other products. The appearance of belt sorters solved this problem with the capability of wide applications.
Belt-type controls the speed of transport of materials with a highly consistent mode, which means the time between the camera's detection of impurity and the nozzles' ejection is always fixed, so the material will not reach the ejection point too early or too late.The vibration is even and the frequency is stable so that the falling of the material can form a waterfall flow, which will not overlap the material and reduce the color selection error.Customized rust-proof aluminum alloy materials are produced strictly according to the standards of international food safety and are non-toxic and harmless.LED lights with more than 10 years service life. Shadowless LED lights can precisely focus the ray on the inspection line which can identify any light color differences.Dual 5388px full-color high-resolution cameras, able to recognize the 0.01mm defects. High-frequency ejectors, up to 1200Hz/s. The fastest response time is within 0.6ms.
Belt-type controls the speed of transport of materials with a highly consistent mode, which means the time between the camera's detection of impurity and the nozzles' ejection is always fixed, so the material will not reach the ejection point too early or too late.The vibration is even and the frequency is stable so that the falling of the material can form a waterfall flow, which will not overlap the material and reduce the color selection error.Customized rust-proof aluminum alloy materials are produced strictly according to the standards of international food safety and are non-toxic and harmless.LED lights with more than 10 years service life. Shadowless LED lights can precisely focus the ray on the inspection line which can identify any light color differences.Dual 5388px full-color high-resolution cameras, able to recognize the 0.01mm defects. High-frequency ejectors, up to 1200Hz/s. The fastest response time is within 0.6ms.
